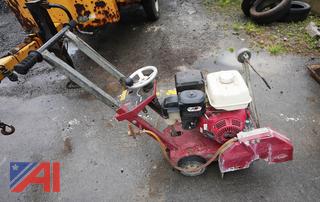

MK Diamond MK-1600 Walk-Behind Concrete Saw

MK Diamond MK-1600 Walk-Behind Concrete Saw

Serial #663066

Standard type with 18" blade capacity mounted on the right side

Honda GX390 gasoline engine

Fast/Slow speed & Up/Down cut selector

It is in fair used condition.

SAS IS

Good luck bidding

The following general information is web-sourced and may contain variances from the subject unit:

• Blade Capacity: Up to an 18-inch (457mm) diamond blade.
• Maximum Cutting Depth: Capable of a 6-5/8 inch (168mm) deep cut.
• Arbor Size: Standard 1-inch (25mm) blade shaft diameter with dual self-aligning pillow block bearings.
• Blade RPM: Operates at an optimized 2,700 RPM for efficient cutting.
• Overall, Weight: Varies between 233 lbs and 275 lbs, providing necessary downward weight to avoid machine bouncing.

• Chassis Design: Engineered with a rigid, one-piece box construction frame made from 3/16-inch hot-rolled steel to prevent twisting or flexing during stressful deep cuts.
• Corrosion Resistance: Fully powder-coated finish shields the heavy steel from corrosive concrete slurry and water exposure.
• Wall Clearance: The cast-aluminum hinged blade guard is strategically narrow, allowing the saw to cut within 2 inches of a wall or curb.
• Water Distribution System: Includes an integrated stainless steel water delivery manifold that splits and injects water onto both sides of the diamond blade to manage dust and maximize blade lifespan.
• Mobility: Moves on heavy-duty 8" x 2-1/4" non-slip rubber wheels packed with maintenance-free hubs and sealed roller bearings.

• Engine Type: Air-cooled, 4-stroke OHV (Overhead Valve) single-cylinder gasoline engine.
• Performance: Features a cast-iron cylinder sleeve and a heavy-duty Cyclone air cleaner assembly (common on asphalt/concrete models) designed to filter out the severe airborne dust generated by cutting.
• Family Number: The g20d54s0389n2a designation identifies its specific production configuration for emissions standards.
