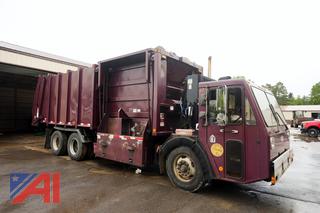

2010 Crane Carrier Heil Low Entry 38 YD Recycler Truck/Packer

The following general information is web-sourced and may contain variances from the subject unit:

• Low-Entry Step Height: The cab layout features an incredibly low 18-inch step-in height from the ground. This drop-frame architecture minimizes operator fatigue and drastically lowers the risk of repetitive-motion injuries on high-frequency routes where workers constantly exit and enter the cab.
• Severe-Service Cab: Built with a rugged, all-steel fabricated cab shell, it provides exceptional impact durability compared to standard over-the-road truck aluminum cabs. It features a large "circle of safety" wrap-around windshield to maximize forward and lateral visibility in tight residential neighborhoods.
• 6x4 Tandem Axle Configuration: The 6x4 drive layout means it has a single steer front axle and two driven rear axles (tandem). This provides the superior traction needed to handle top-heavy, compacted loads over slick or unpaved terrain.
• Tires and Stance: Riding on heavy-duty 11R22.5 tires, this setup distributes the vehicle's high Gross Vehicle Weight Rating (GVWR) evenly across dual wheels on the rear tandem axles, providing stability and longevity under high-torque, stop-and-go stresses.

• Massive 38-Yard Capacity: A 38-cubic-yard volume is on the upper end of residential refuse bodies, allowing the vehicle to complete extensive routes before driving to a material recovery facility (MRF) or transfer station to dump.
• 2000 Series Multi-Compartment / Packer Body: Heil 612 multi-compartment units are typically split-body or specialized side/rear-loading recycling vehicles. The integrated 2000 Series packer system actively compresses loose recyclable materials (like cardboard, plastics, and aluminum cans) via heavy-duty hydraulic cylinders and a sweep/slide packer panel. This increases material density, vastly maximizing the truck's payload capacity per trip.
• Durability Architecture: True to Heil engineering, it incorporates robust high-tensile steels to withstand the abrasive friction of raw glass and metals, combined with zinc-plated hydraulic tubes to resist rust and premature wear.

• On-Route Efficiency: On residential curbside recycling routes, the operator can switch to the right-hand side of the cab. This positions the driver directly adjacent to the curb or sidewalk, enabling them to safely keep an eye on obstructions, pedestrians, and collection bins without leaning across the cab.
• Seamless Stand-Drive or Sit-Drive Option: These configurations usually pair the right-hand drive station with a bi-fold door or open access window, allowing the operator to shift into neutral, step right out to collect a cart or box, dump it into the hopper, and step back in to proceed to the next house instantly.
• Dual Interlocked Systems: The steering shafts, brake valves, accelerators, and transmission gear selectors are linked through specialized valves and mechanical links, ensuring that input commands are seamlessly handled while safety lockouts prevent accidental dual inputs.

Component	Technical Detail	Operational Impact
Engine	Cummins ISC 8.3L 6-Cylinder Diesel (250 Horsepower)	A wet-sleeve inline-6 engine using a high-pressure common-rail fuel system. The 250 hp rating is tuned for optimal fuel efficiency and immense low-end torque, which allows the truck to launch smoothly under heavy compacted loads.
Emissions Cycle	2010 EPA Spec (Selective Catalytic Reduction)	Being a 2010 model-year engine, this unit includes an exhaust aftertreatment system utilizing Diesel Exhaust Fluid (DEF) and a particulate filter to meet strict clean-air mandates.
Transmission	Allison 3500 RDS Push-Button Automatic	The Rugged Duty Series (RDS) automatic transmission is engineered with a wide gear ratio and a deeper first gear specifically for vocational applications. It handles high-intensity torque demands without clutch wear.
Controls	Electronic Push-Button Gen-4/Gen-5 Shifter	Features a clean digital dash keypad for selecting Drive, Neutral, and Reverse. It works smoothly alongside the truck’s Power Take-Off (PTO) system, which provides hydraulic power to run the Heil recycler body and packer at variable speeds.
