Lot · Village of Lancaster DPW Surplus-NY #47997

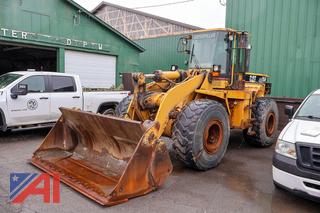

1996 Cat 950F Wheel Loader
Bidding ends July 30, 2026
Description
Fleet # -
Year - 1996
Make - Cat
Model - 950F
Body Style - Wheel Loader
VIN/SN - 5SK02085
Odometer Numbers -
Hours - 10140 last known
Engine Make/Model - Cat 3116 turbocharged 6.6L 170 net hp (126.8 kW), 180 gross hp (134.2 kW)
Cyl - 6
Fuel Type - Diesel
Transmission Name - Countershaft powershift, 4 Forward/4 Reverse Planetary Powershift
Transmission Type - Automatic
Single Axle/Dual Axle - Dual axle/ Single wheel
Tire Size/Type - 23.5R25
Tire Condition - Fair
Plow Size -
Dump Box Size -
Drivetrain -
GVWR - Base Operating Weight: 34,679 lbs to 35,500 lbs
Does the unit operate? - Yes
Does the vehicle start? - Yes
Are keys available? - Yes
Ownership Information - Bill of Sale Only (No Title)
Mechanical Condition - Poor
Mechanical Notes - Poor to fair, considered poor due to the gear system does not come of out 2nd gear. The hour meter was broken in 2019.
Body Condition - Fair
Body Notes - Solid with average rust and wear. View images. The loader bucket is a 9' 4-in-1.
Interior Condition - Fair
Misc Info -
The following general information is web-sourced and may contain variances from the subject unit:
- Engine Model: Cat 3116 Turbocharged 6-cylinder diesel
- Power Output: 170 net horsepower (126.8 kW) | 180 gross horsepower (134.2 kW)
- Displacement: 402.8 cubic inches (6.6 Liters)
- Rated Engine Speed: 2,200 RPM
- Fuel System: Individual high-pressure unit injectors that optimize fuel atomization for efficient combustion and lower emissions.
- Transmission Type: 4 Forward / 4 Reverse Planetary Powershift
- Maximum Forward Speed: 24.4 mph (39.3 kph)
- Maximum Reverse Speed: 26.7 mph (43.0 kph)
- Axles: Heavy-duty outboard planetary final drives featuring fully enclosed, adjustment-free wet disc brakes to seal out contaminants.
- 4-in-1 Bucket Versatility: Operates as a standard loader bucket, a clamshell bucket (for picking up large debris or logs), a dozer blade (when opened), and a scraper/clamshell for bottom-dumping material.
- Dump Clearance: ~9.6 feet (2.94 meters) at maximum lift, allowing it to easily clear high-sided dump trucks and hoppers.
- Breakout Force: Exceeds 35,000 lbs, delivering massive prying power.
- Hydraulic System: Features a high-flow implement pump that maintains rapid hydraulic cycle times even at low engine idle speeds.
- Operating Weight: Approximately 34,679 lbs (15,730 kg) depending on the heavier clamshell counterweights.
- Static Tipping Load: 23,243 lbs (10,543 kg) when straight.
- Wheelbase: 10.4 feet (3.18 meters).
- Width Over Tires: 9.1 feet (2.77 meters).
- Height to Top of Cab: 11.6 feet (3.54 meters)
