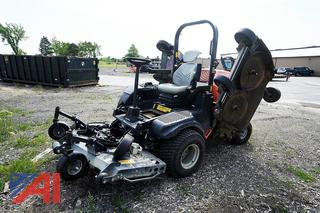

Jacobsen HR600 Rotary Folding Cutting Deck

Jacobsen HR600 Rotary Folding Cutting Deck

Likely a 2017 model with a Kubota engine having a MFD 2017/06

Approximately 1,081 hours on meter but true hours are unknown

13' cutting path

Has a front cutting deck and (2) wing decks, the front deck is 5' and the wings are 4'

Diesel Kubota engine, model #V2403-CRT-EF02-V2403, 2.4L 47.9kw

Front turf tires: 26 x 12.00B12, good

Rear turf tires: 20 x 10.00-8, fair

Single fuel tank, folding ROPS

All hydraulic with the belt on motor serial #MR471

Unit is nonoperational, blown engine.

Sold AS IS For Repair

Good Luck Bidding

The following general information is web-sourced and may contain variances from the subject unit:

Jacobsen HR600 is a heavy-duty, commercial-grade wide-area rotary mower engineered for large-scale turf management, high productivity, and zero-maintenance cutting decks. This specific unit matches the JMP653 product code family, designating it as an authentic factory configuration built around a premium Kubota diesel platform

• The Transmission: It utilizes a high-efficiency hydrostatic drive system. A hydraulic pump powered directly by the engine forces pressurized oil to hydraulic wheel motors.
• Speed Control: Speed is infinitely variable using a foot-operated traction pedal. You change speeds seamlessly from a dead stop to full transport speed simply by altering foot pressure.
• SureTrac™ 4WD System: Your machine features Jacobsen’s SureTrac™ 4-wheel drive system. It uses a parallel-cross-series hydraulic circuit that automatically transfers flow and torque to the wheels with the best traction. This dynamic power transfer allows the unit to climb steep inclines and navigate side slopes safely without slipping.
• On-Demand Reverse: The 4WD system functions automatically in reverse gear whenever backward traction is engaged.
• Braking System: Service braking is dynamic, meaning the hydrostatic system slows the vehicle automatically when you lift your foot off the traction pedal. The parking brake consists of maintenance-free wet brakes integrated directly inside the front wheel motors, meaning there are no physical pads, cables, or linkages to wear down or adjust.

• Engine Type: 2.4-Liter, 4-cylinder, liquid-cooled, turbocharged diesel.
• Power Output: Rated at 47.9 kW (64.2 Horsepower) operating at 2700 RPM.
• Fuel & Emissions: It relies on a High-Pressure Common Rail (CR) electronic fuel injection system combined with Exhaust Gas Recirculation (EGR) to meet strict Tier 4 Final / Stage IIIB emissions compliance.
• Cooling System: Features a side-by-side radiator and hydraulic oil cooler equipped with a reversing fan system. The fan automatically or manually reverses its spin direction to blow away clippings and debris, preventing engine overheating.

• Deck Array: One front-mounted 5-foot (60-inch) base deck paired with two individual side-folding 4-foot (48-inch) wing decks.
• Direct Hydraulic Drive: There are no belts, belt pulleys, or gearboxes on these decks. Each individual blade spindle is driven by its own dedicated hydraulic motor with self-lubricating bearings. This eliminates the need for daily greasing or belt tensioning adjustments.
• Independent Articulation: The operator can independently raise or lower the side wing decks using electronic fingertip controls. You can actively mow with 1, 2, or all 3 decks lowered to seamlessly squeeze through narrow pathways or clear large fields.
• Blades: Outfitted with MARBAIN® high-strength boron alloy steel blades designed for impact resistance and edge retention.

• 2-Post Folding ROPS: Equipped with a certified 2-post Roll-Over Protective Structure that can be folded down manually to clear low storage entries or tree canopies. Always keep the ROPS upright and use your seatbelt during normal operation.
• Tilt Sensor Technology (TST): Built-in angle indicators monitor slope gradients in real-time, delivering visual and audible warnings to the operator if the mower reaches unsafe working angles on a hill.
• Operator Platform: Features an ISO-mounted isolated platform paired with a fully adjustable high-back premium suspension seat to absorb vibrations. All primary controls are grouped on an ergonomic, armrest-mounted console.
• Steering: Uses Jacobsen's Q-Amp® variable-rate hydrostatic power steering system, allowing tight, highly responsive turning with minimal operator fatigue

USED Replacement values of similar operational units:

• Like-for-Like Used Market Value (2017–2020 Models): $30,000 – $70,000 USD
  To replace your specific 2017 machine with a used unit of a similar era, expect dealer retail prices to be between $30,000 and $70,000, heavily dictated by hours of operation and deck wear. For instance, a tidy 2023 unit with 1,230 hours lists for around $30,454, while a fully refurbished, dealer-certified unit on RMT Equipment runs near $69,997.
• Wholesale / Auction Value: $15,000 – $25,000 USD
  If you are valuing the machine for immediate liquidation, insurance actual cash value (ACV), or farm auctions, high-hour or "as-is" units of this exact generation typically fetch around $15,950 at commercial turf clearings
