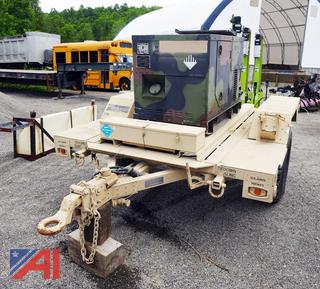

Military 5KW Diesel Generator & Trailer

Military 5kW diesel Generator & Trailer

The trailer is single axle modified by Schutt Industries

1-1/2 Ton, LTT-HC chassis, NSN #6115-01-542-6775 ARN #4B04TY

The tires are Goodyear 37 x 12.50R16.5 in good condition

Generator #MEP-802A, 120/1PH, 120/240v, 1Ph, 120v/208 3Ph, diesel with 38 hours on meter

The trailers gross weight is 4200Lbs

This lot is all in very good shape with very low hours and is being sold with a  Bill of Sale only

Sold AS IS

Good Luck Bidding

The following general information is web-sourced and may contain variances from the subject unit:

• Power Output: 5 Kilowatts (kW) at a 0.8 power factor.
• Engine: Onan / Lister-Petter DN2M two-cylinder, liquid-cooled diesel engine.
• Fuel Type: Diesel (DL-1, DL-2), JP-8, and jet fuel alternatives.
• Electrical Output Configurations:
  • 120 Volt (Single Phase): 52 Amps
  • 120/240 Volt (Single Phase): 26 Amps
  • 120/208 Volt (Three Phase): 17 Amps
• Frequency: 60 Hz (standard U.S. grid frequency).
• Physical Profile: 800 lbs dry weight, fully enclosed in an acoustic, weather-resistant aluminum housing.
• Logistics & Tracking:
  • NSN: 6115-01-274-7387 (National Stock Number)
  • Contract: W15p7t-08-d-a005
  • Manufacturer: Fermont (a major defense contractor for mobile power)

• Weight Profiles:
  • Curb Weight: 1,175 lbs (empty trailer weight).
  • Max Payload: 3,025 lbs (maximum weight it can carry).
  • Max Gross Weight: 4,200 lbs (total combined weight capacity).
• Axle & Tires: Single heavy-duty axle equipped with military-spec Goodyear 37x12.50R16.5 run-flat tires.
• Logistics & Tracking:
  • Trailer Assembly NSN: 2330-01-387-5424 (Chassis NSN: 6115-01-542-6775)
  • Serial Number: 124500015334
  • Delivery Date: January 4, 2013
  • Contract: W56HZV-08-d-0107

• TM 9-6115-641-10: This is the U.S. Army Operator's Manual for the MEP-802A generator. It covers basic operations, pre-start checks, control panel functions, and operator-level troubleshooting.
• TO 35C2-3-456-11: This is the Technical Order manual used by the U.S. Air Force for the exact same generator ecosystem, ensuring cross-branch standardization.

• Tactical Quiet Operations: The enclosure drastically minimizes noise, making it quiet enough to hold a conversation next to it while running under load.
• EMP Resistance: Built with analog gauges and ruggedized solid-state components designed to withstand electromagnetic interference and harsh combat environments.
• Off-Road Mobility: The Schutt trailer paired with 37-inch Goodyear tires provides high ground clearance, matching the track width and off-road capability of military vehicles like the HMMWV (Humvee).
• Fuel Efficiency: The 2-cylinder diesel engine is highly efficient, typically burning under 0.5 gallons of fuel per hour under full electrical load.
